Haihao Group Supplies ASME B16.9 Stainless Steel Fittings for Sour Service to Singapore

Haihao Group has completed a new shipment of SA/A403 WP316/316L stainless steel fittings for a Singapore customer. The order covers long-radius elbows and concentric reducers in small-bore sizes, manufactured to ASME B16.9 and specified for sour service under NACE MR0175/ISO 15156 requirements.

The fittings include 45° and 90° long-radius elbows in 2″ and 1/2″ sizes, together with concentric reducers ranging from 2″ × 3/4″ down to 3/4″ × 1/2″. Beyond dimensional compliance, the order requires 100% PMI and liquid penetrant examination, with actual chemical composition reporting for key alloying elements.

Stainless Steel Fittings for Sour Service

Sour service piping places additional demands on material selection and inspection. Hydrogen sulfide-containing environments can create specific risks for metallic components, making material control and verification an important part of procurement.

For this Singapore order, Haihao Group supplied ASME B16.9 stainless steel fittings in SA/A403 WP316/316L. The specification combines the corrosion-resistant properties of 316/316L stainless steel with additional inspection requirements for sour service applications.

The supplied fitting range includes:

• 2″ SCH 10S 45° long-radius elbow
• 1/2″ SCH 40S 90° long-radius elbow
• 2″ SCH 10S 90° long-radius elbow
• 3/4″ × 1/2″ SCH 40S concentric reducer
• 1″ × 1/2″ SCH 40S concentric reducer
• 2″ × 3/4″ SCH 10S × SCH 40S concentric reducer
• 2″ × 1″ SCH 10S × SCH 40S concentric reducer

All listed products use SA/A403 WP316/316L and are manufactured according to ASME B16.9.

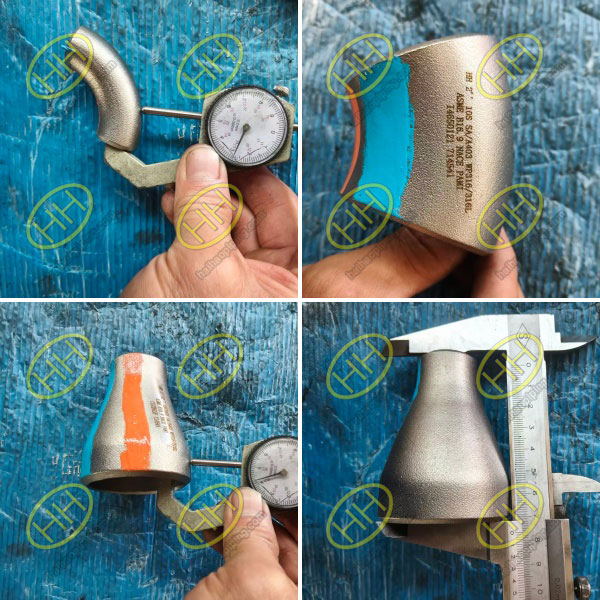

ASME B16.9 WP316316L stainless steel elbows and concentric reducers for sour service

ASME B16.9 Elbows and Concentric Reducers

The order contains two main fitting types: long-radius elbows and concentric reducers.

The ASME B16.9 stainless steel fittings include 45° and 90° long-radius elbows. The long-radius configuration provides a gradual change in flow direction and is commonly selected for process piping where smooth routing and appropriate flow characteristics are required.

The concentric reducers provide a controlled transition between different nominal pipe sizes. The supplied combinations include both 40S and mixed 10S × 40S schedules, such as 2″ × 3/4″ and 2″ × 1″.

Because these are small-bore components, accurate dimensional control remains important. The fittings must match the connected pipe dimensions and maintain the specified wall thickness throughout the manufacturing process.

100% PMI and Liquid Penetrant Testing

Inspection requirements were a significant part of this order.

Haihao Group’s production specification calls for 100% Positive Material Identification (PMI) and 100% Liquid Penetrant Testing (LP/PT). The PMI requirement is accompanied by a report showing the actual measured content of Cr, Ni, Mo and C.

PMI provides a direct verification of material identity and helps confirm that the supplied fittings correspond to the specified stainless steel grade. For a sour service order, this additional verification provides useful traceability between the material certificate, production lot and finished fitting.

Liquid penetrant testing is used to detect surface-breaking discontinuities on suitable non-porous surfaces. Applying the test to all specified fittings provides an additional inspection step beyond dimensional and visual checks.

Solution Annealing and Pickling

The supplied fittings require solution annealing and pickling heat treatment.

Solution annealing is used to establish the required metallurgical condition of austenitic stainless steel fittings. Pickling is then applied to remove surface oxides and heat-treatment scale, leaving a cleaner stainless steel surface.

For process piping components, surface condition can be an important part of the final product quality. The combination of heat treatment, surface cleaning, PMI and liquid penetrant testing provides several layers of verification before shipment.

Product Details for the Singapore Order

The main product specifications are summarized below:

Haihao Group can supply stainless steel elbows, reducers, tees and other ASME-standard pipe fittings in different grades, sizes and schedules according to project specifications.

For projects requiring ASME B16.9 stainless steel fittings, sour service compliance, PMI reports or special inspection requirements, customers can provide the purchase specification, drawings or material requirements to Haihao Group for technical review and quotation.
