ASTM A815 S32750 Fittings Supplied to Singapore Customer

Haihao Group recently completed the production and delivery of a batch of ASTM A815 S32750 fittings for a customer in Singapore. The order includes eccentric and concentric reducers, as well as 45° and 90° long radius elbows. All fittings are manufactured in UNS S32750 super duplex stainless steel and specified to ASME B16.9.

For compact piping systems, these fittings may look like relatively small components, but material selection, wall thickness and dimensional accuracy directly affect the reliability of the finished pipeline. This is particularly important when the piping system is designed for corrosive or demanding service conditions.

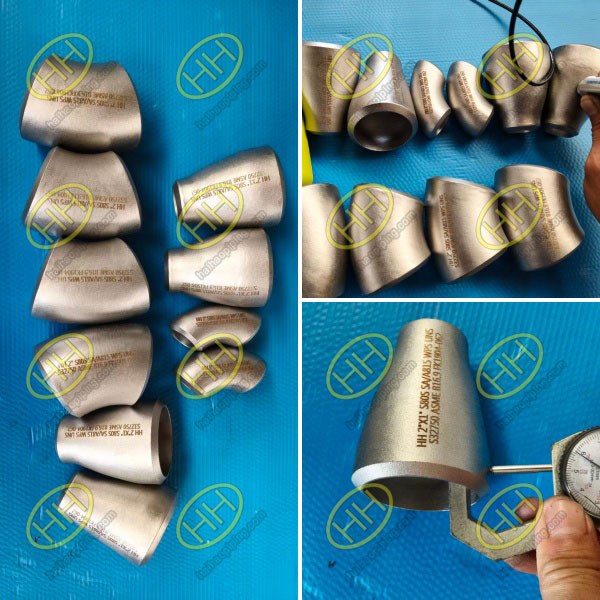

ASTM A815 S32750 UNS S32750 pipe fittings manufactured by Haihao Group

Product Details of the Singapore Order

The supplied fittings are based on NPS 1″ and 2″ sizes, with Schedule 80S wall thickness. The reducers include both eccentric and concentric configurations, while the elbows are long radius types designed to provide controlled changes in flow direction.

Why UNS S32750 Was Selected

UNS S32750, commonly known as Super Duplex 2507, combines the characteristics of austenitic and ferritic stainless steels. Its high chromium, molybdenum and nitrogen content provides strong resistance to chloride-induced corrosion, while its duplex structure offers higher mechanical strength than many conventional austenitic stainless steels.

This makes S32750 pipe fittings suitable for piping systems where both corrosion resistance and mechanical performance are important. Typical applications include offshore facilities, oil and gas processing, chemical plants, desalination systems and marine-related equipment.

For customers working with seawater, chlorides or other aggressive media, Super Duplex 2507 fittings can be considered when standard stainless steel grades may not provide sufficient corrosion resistance.

Reducers for Different Piping Arrangements

The Singapore order contains both eccentric and concentric reducers.

A 2″ × 1″ eccentric reducer changes the pipe diameter while keeping one side of the fitting flat. Depending on the piping arrangement, this configuration can help control liquid accumulation and support proper drainage or equipment connection.

The 2″ × 1″ concentric reducer reduces the diameter symmetrically around the pipe centerline. It is commonly selected where a centered transition between two pipe sizes is preferred.

Both reducer types are manufactured according to ASME B16.9 dimensional requirements. The selection between eccentric and concentric designs should ultimately be based on the piping layout, flow direction, equipment connection and project specification.

Long Radius Elbows for Smooth Direction Changes

The order also includes 45° and 90° long radius elbows.

A 45° long radius elbow provides a gradual change in pipeline direction, while a 90° long radius elbow is used when the line needs to make a right-angle turn. Compared with tighter-radius configurations, the long radius design provides a smoother flow path and can be advantageous in process piping where pressure loss and flow disturbance need to be considered.

The ASTM A815 S32750 fittings supplied for this project use SCH 80S wall thickness, providing a robust configuration for the specified piping application.

Manufacturing and Quality Control

Producing ASME B16.9 S32750 fittings requires more than simply forming the required geometry. Super duplex stainless steel has specific requirements regarding heat treatment, forming and material control. Improper processing can affect the balance of the duplex microstructure and, consequently, the corrosion resistance and mechanical properties of the finished fitting.

At Haihao Group, production control covers material identification, forming, heat treatment, dimensional inspection and final quality verification according to the applicable project requirements.

For export orders, documentation can also be prepared according to customer requirements, including material certificates, inspection records and relevant quality documents.

Why Singapore Customers Choose Haihao Group

Singapore is an important market for process, marine, energy and industrial piping products, where corrosion resistance and long-term service reliability are often major considerations.

Haihao Group has more than 40 years of experience in manufacturing and supplying industrial pipe fittings, flanges and steel pipes for international projects. Our production capabilities cover carbon steel, stainless steel, duplex and super duplex materials, with products manufactured to ASTM, ASME, EN, DIN, JIS and other international standards.

For customers looking for UNS S32750 fittings, the advantage is not simply having the correct material grade. The fitting must also match the required dimensions, wall thickness, manufacturing standard and project documentation.

That is why Haihao Group works from the customer’s complete specification rather than treating a fitting as a standard commodity. Size, schedule, material grade, fitting configuration, inspection requirements and applicable standards are reviewed before production.

Need ASTM A815 S32750 Fittings for Your Project?

Whether you need a single reducer or a complete package of Super Duplex 2507 fittings, Haihao Group can manufacture fittings according to your drawings, MTO, project specifications or applicable international standards.

Send us your size, schedule, material grade, fitting type, standard and quantity, and our engineering and sales team can review the requirements and provide a suitable quotation for your project.
